| مشخصات سخت افزاری | 1.4Megapixel progressive CMOS sensor
5meter IR illumination distance
:Minimum illumination
0 lux with IR LEDs on
1lux (color), 0.5 lux (B&W) with IR LEDs off
Built-in Infrared-Cut Removable (ICR) Filter module
Lens: Fixed length 2.38 mm:Angle of view
H) 94.36°)
V) 59.3°)
D) 110.44°)
Built-in microphone and speaker
microSD card slot |
|---|
| مشخصات تصویر | Configurable image size, quality
Time stamp and text overlays
configurable motion detection windows
Pre-event snapshot/recording |
|---|
| فرمت ویدیو | H.264/MJPEG format simultaneous compression
JPEG for still images |
|---|
| رزولوشن ویدیو | (H.264: 1280 x 720 (default
640x 480
320x 240 at frame rates up to 30 fps(MJPEG: 1280 x 720 (default
640x 480
320x 240 at frame rates up to 30 fps |
|---|
| Pan/Tilt/Zoom | (Pan Range :-170° to +170° (total 340°
(Tilt Range:-20° to +90° (total 110° |
|---|
| فرمت صدا | G.711 μ-law |
|---|

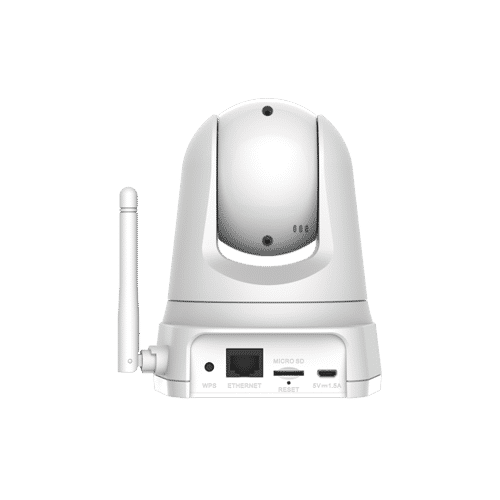

| رابط کاربری | 10/100BASE-T Fast Ethernet port
Single-band 1T 1R mode supports a maximum data
rate of 72.2 Mbps (PHY rate) using the 20 MHz band
802.11n/g/b wireless |
|---|
| پروتکل های شبکه | IPV4, ARP, TCP, UDP, ICMP
DHCP Client
(NTP Client (D-Link
DNS Client
(DDNS Client (D-Link
SMTP Client
FTP Client
HTTP Server
PPPoE
UPnP Port Forwarding
LLTD |
|---|
| امنیت | WPS
WPA-PSK, WPA2
HTTP digest encryption
Password authentication |
|---|
| Event Management | Motion detection
Event notification and uploading of snapshots/video clips via e-mail or FTP
Sound level detection |
|---|
| ارتباط بی سیم | Wi-Fi |
|---|
| نوع دوربین | Indoor |
|---|
| PoE | Non PoE |
|---|
| برند | D-link |
|---|
