استاندارد DSL
|
VDSL/ADSL
|
|

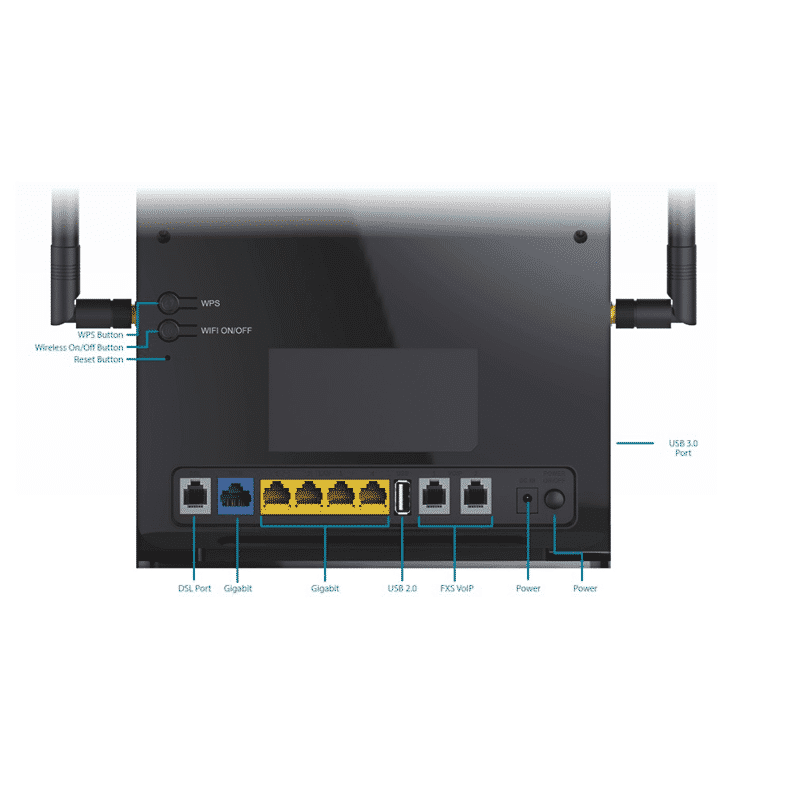

رابط های کاربری
|
1 پورت DSL
4 پورت گیگابیتی شبکه
1پورت گیگابیتی WAN
2 پورت FXS VoIP
وایرلس سری ac
1 پورت USB 2.0
1 پورت USB 3.0
|
|
آنتن
|
2 آنتن High Gain
|
|
سرعت در هر فرکانس
|
2.4GHz : Up to 300 Mbps
5GHz : Up to 866 Mbps
|
|
قابلیت های ADSL
|
T1.413i2, G.992.1
G.dmt, G.992.2, G.lite
(G.992.3 (G.bis/ADSL2
(+G.992.5 (ADSL2
( ITU G.994.1 (G.hs
(Annex L (Reach Extended ADSL2
|
|
قابلیت های VDSL
|
ITU-T G.993.2 VDSL2
Supports 8a, 8b, 12a, 12b, 17a, 30a profiles
Supports G.vector
Supports ATM and PTM
Supports G.INP
(Supports ATM forum UNI3.0, 3.1 and 4.0 permanent virtual circuits (PVCs
Supports CBR, UBR, VBR-rt, VBR-nrt
Supports multiple PVCs
Supports ITU-T i.610F4/F5 OAM
|
|
پروتکل های شبکه
|
RFC2684 multiprotocol Encapsulation over ATM Adaptation Layer 5
RFC1483 multiprotocol Encapsulation over ATM Adaptation Layer 5
( RFC2364 PPP over ATM ALL5 (PPPoA
( RFC2516 PPP over Ethernet (PPPoE
RFC1662 PPP in HDLC-like Framing
RFC1332 PPP Internet Protocol Control Protocol
( RFC1577/2225 Classical IP and ARP over ATM (IPoA
RFC894 A Standard for the Transmission of IP Datagrams over Ethernet Networks
RFC1042 A standard for the Transmission of IP Datagrams over IEEE 802 Networks
(MER (a.k.a IP over Ethernet over AAL5
(Support ALG (Application Level Gateways
|
|
امنیت
|
(WPA & WPA2 (Wi-Fi Protected Access
Wi-Fi Protected Setup (WPS) – PIN/PBC
|
|
قابلیت های پیشرفته
|
Multi-language Web Setup Wizard
UPnP support
(Multiple PVC (up to 8
Dual Active Firewall
VPN pass-through/multi-session PPTP/L2TP/IPSec
(802.1p QoS (Quality of Service
|
|
قابلیت های روتر
|
(RFC768 User Datagram Protocol (UDP
(RFC791 Internet Protocol (IP
(RFC792 Internet Control Message Protocol (ICMP
(RFC793 Transmission Control Protocol (TCP
(RFC826 An Ethernet Address Resolution Protocol (ARP
RFC862 Echo Protocol
Support IP routing
Support transparent bridging
Support source and destination routing
Support DHCP server/client
Support UPnP
Support NAT,NAPT
Support DMZ
Support IP QoS
Support IGMP proxy
Support IPv6
|
|
قابلیت های مدیریتی
|
Device Configuration, Management and Update
Web based GUI
Command Line Interface via telnet, or SSH
(Universal Plug and Play (UPnP) Internet Gateway Device (IGDv1.0
(WAN Management Protocol (TR-069
SNMP v1/v2
PSI configuration file upload and download
Date/time update from SNTP Internet Time Server
|
|
استاندارد ها
|
IEEE 802.11ac
IEEE 802.11n
IEEE 802.11g
IEEE 802.11b
IEEE 802.3i
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3x Flow Control
|
|
تکنولوژی Wi-Fi
|
802.11ac
|
|
سرعت Wi-Fi
|
AC750 تا AC1200
|
|
درگاه USB
|
ندارد
|
|
برند
|
D-link
|
