| سایز | 11-inch Desktop/Rackmount Size, 1U Height |
|---|
| پورت | 24 پورت 10/100Mbps |
|---|
| ویژگی های پورت | IEEE 802.3 compliant
IEEE 802.3u compliant
Supports half/full-duplex operation
Auto-negotiation
Auto MDI/MDIX
IEEE 802.3x Flow Control supports Full-Duplex mode |
|---|
| ظرفیت سوییچ | 4.8Gbps |
|---|
| Maximum Forwarding Rate | 3.57Mpps |
|---|
| جدول MAC Address | 8K |
|---|
| Packet Buffer | 1.75Mbits |
|---|
| Flash Memory | 1MB |
|---|
| نشانگر LED | (Power (per device
(Link/Activity/Speed (per port |
|---|
| Power Consumption | Standby Mode :3.57 watts
Maximum :7.68 watts |
|---|

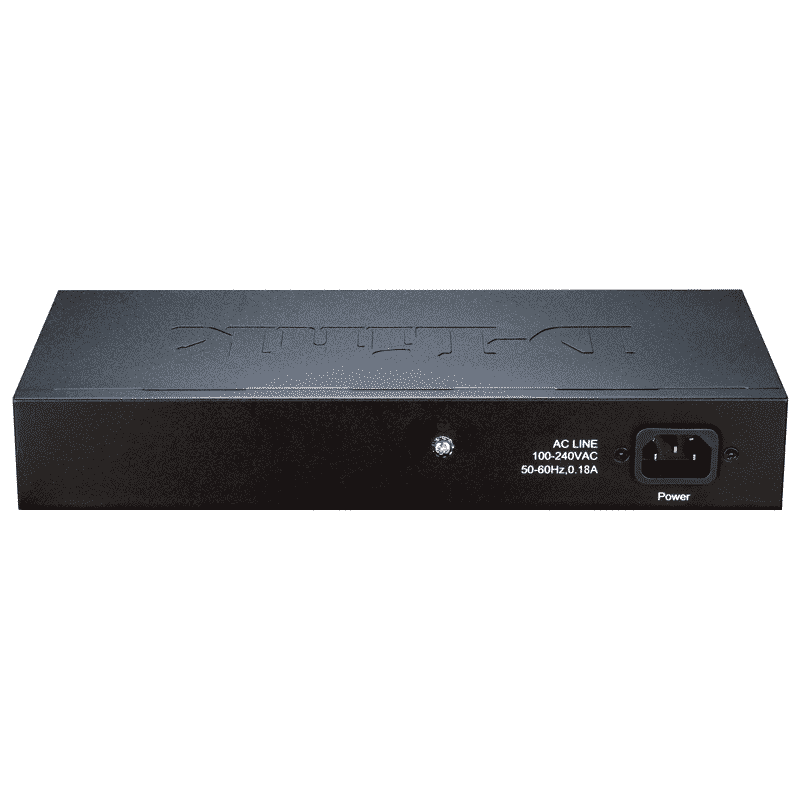

| منبع نغذیه | 100 to 240 V AC
50 to 60 Hz Internal Universal Power Supply |
|---|
| MTBF | 562,066hours |
|---|
| Heat Dissipation | 26.20BTU/hr |
|---|
| وزن | 1.0kg |
|---|
| ابعاد | 280mm*125mm*44mm |
|---|
| Ventilation | Fanless |
|---|
| Operating Temperature | 0 تا 40C |
|---|
| Storage Temperature | -10 تا 70C |
|---|
| Operating Humidity | 10%to95%
non-condensing |
|---|
| Storage Humidity | 5%to95%
non-condensing |
|---|
| EMI | FCC Class A, CE Class A, VCCI Class A, CCC, IC, C-Tick |
|---|
| Safety | UL/cUL, LVD |
|---|
| VLAN | 802.1Q Tagged VLAN-
-VLAN Group-
DES-1100-16/24: 32 static VLAN groups
Configures VID from 1-4094
Port-based VLAN- |
|---|
| ویژگی های لایه 2 ای | MAC Address Table: 8k-
IGMP Snooping-
Static Trunk-
10/100 ports: max. 2 groups per device and 2-4 ports per group
Flow Control-
(Loopback Detection (LBD-
Port Mirroring-
Supports One-to-One or Many-to-One
Supports TX, RX, and both
Statistics – supports 4 groups-
Transmit packet & collision
Receive packet & Transmit packet
Receive packet & Drop packet
Receive packet & CRC packet |
|---|
| QoS | :Bandwidth Control-
(Port-based (Ingress/Egress
Granularity is predefined as: 512 kbps/1024 kbps/2048
kbps/4096 kbps/8192 kbps/16384 kbps/32768 kbps/65536 kbps
2queues per port-
802.1p-
:Queue Handling-
Strict Priority
(Weighted Round Robin (WRR |
|---|
| امنیت | (Static MAC (Max 128 Static MAC entries
Broadcast/Multicast/Unknown Unicast Storm Control |
|---|
| مدیریت | (Web-based GUI (Supports IPv4
SmartConsole Utility
Password Access Control
Port Setting: Set Speed, Duplex mode, Flow control
Configuration File Backup/Restore via HTTP
Firmware File Upgrade via HTTP |
|---|
| محل استفاده | Desktop, Rackmount |
|---|
| تعداد پورت | 18 تا 28 پورت |
|---|
| PoE | None PoE |
|---|
| نوع پورت | Fast Ethernet |
|---|
| نوع پورت آپلینک | N/A |
|---|
| برند | D-link |
|---|
